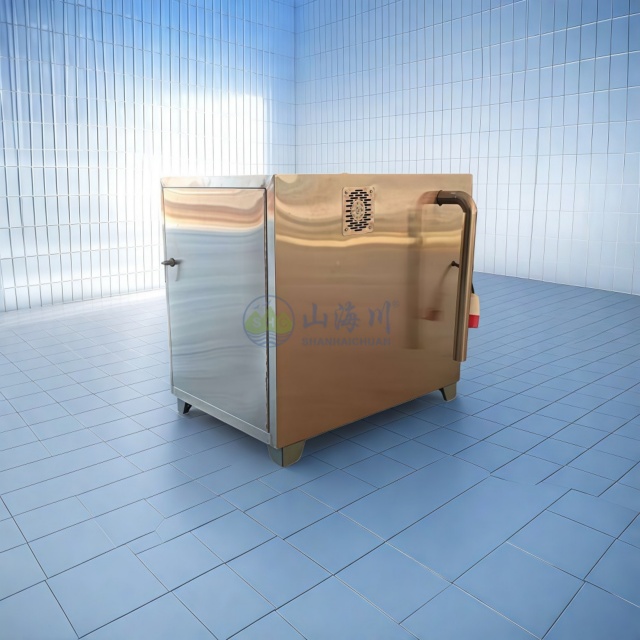

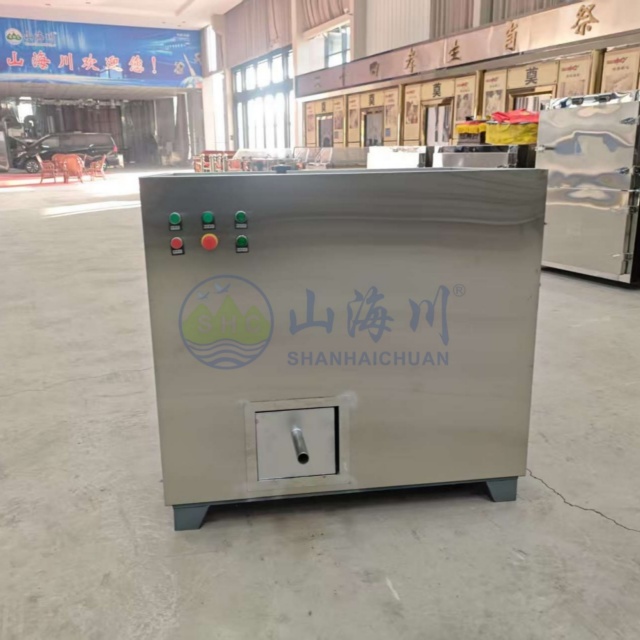

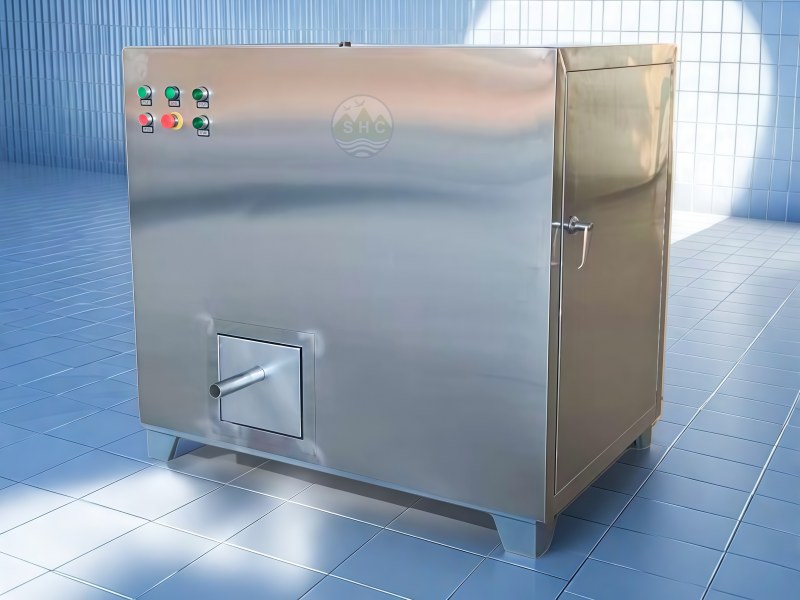

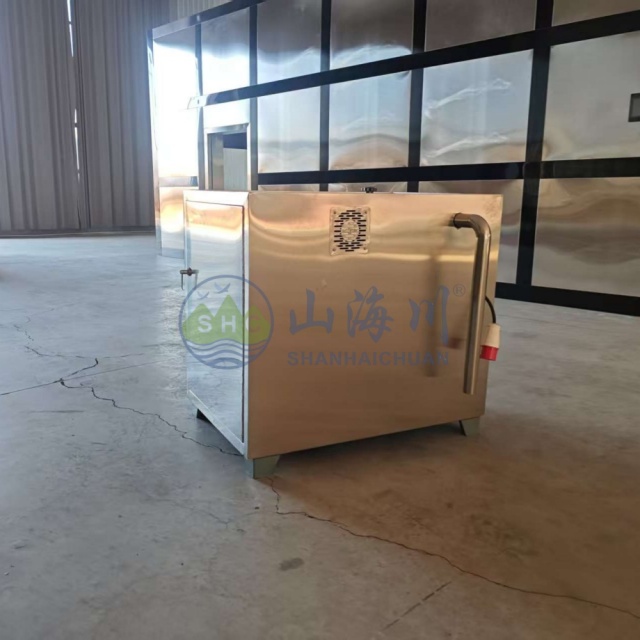

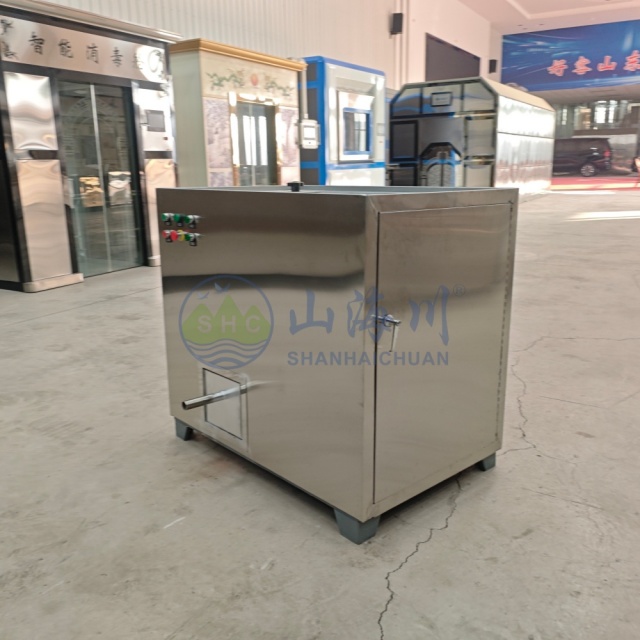

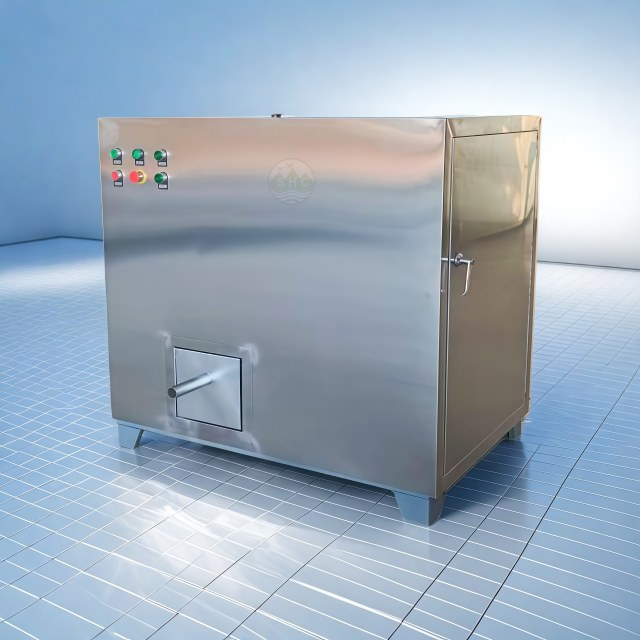

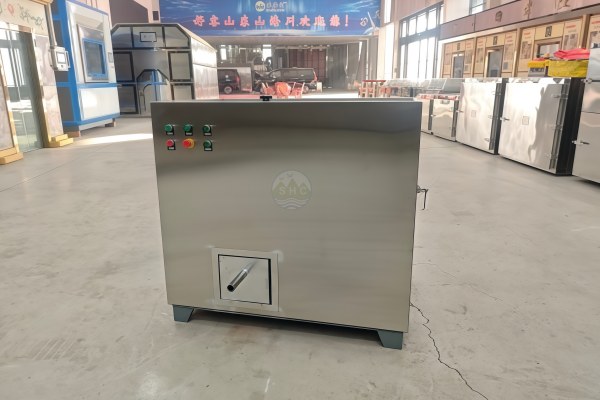

Ash Cooling and Crushing Integrated Machine is a specialized device that integrates cooling, crushing, and dust control into a compact design suitable for practical applications.

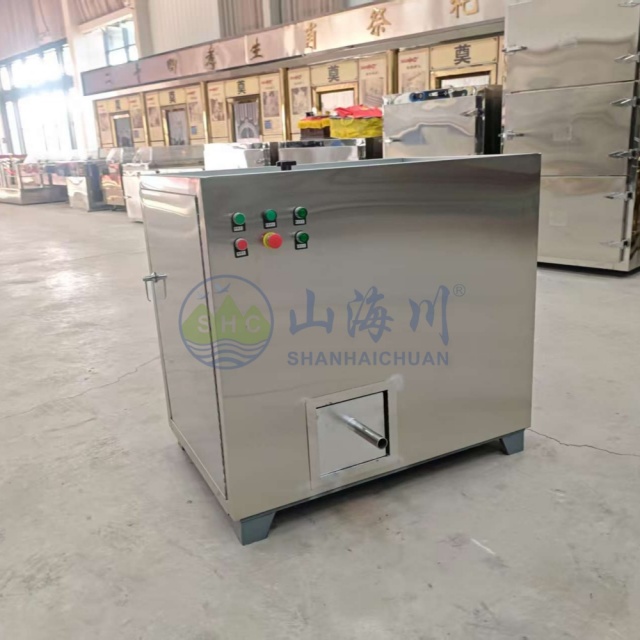

The cremulator AKA bone crusher with integrated cooling system is a highly efficient device specifically designed for the funeral industry, aimed at providing a convenient and effective solution for the cooling and sorting of cremated remains. This equipment can quickly and safely handle the ashes left after cremation, ensuring a clean and hygienic environment during the sorting process.
This specialized equipment combines cooling, crushing, and dust control in a compact unit, making it suitable for practical applications in limited spaces.

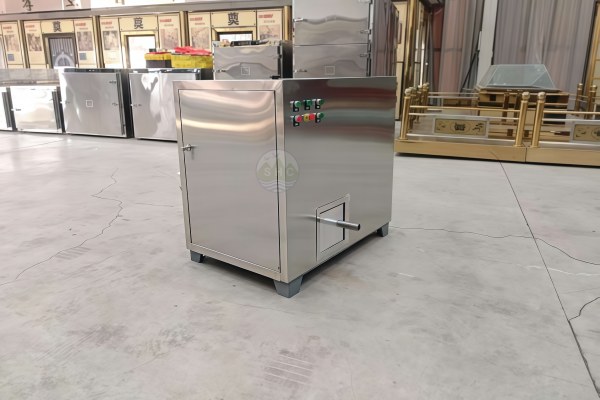

Advanced Cooling System
Equipped with four independent refrigeration modules, the machine rapidly cools ashes on a dedicated platform before transferring them to the crushing barrel, ensuring efficient temperature reduction.

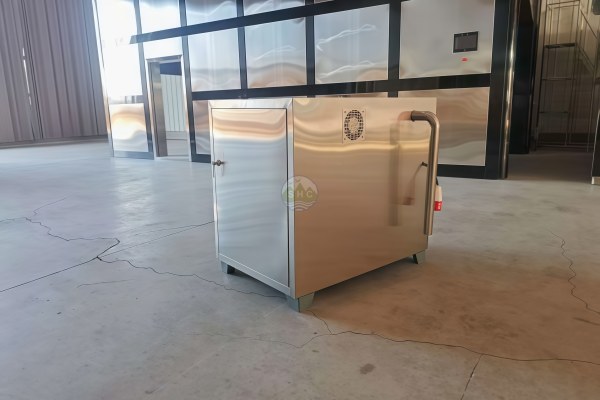

Effective Dust Control
The crushing system features a dedicated fan that not only facilitates fine crushing of ashes but also effectively removes dust generated during the process, minimizing airborne particles and maintaining a cleaner environment.
This product is a specialized device that integrates cooling, crushing, and dust control into a compact design suitable for practical applications. The cooling system features four independent refrigeration modules. Once activated, these modules generate cold air that is transferred to the cooling platform. The ashes are first cooled on the platform before being pushed into the crushing barrel. The crushing system, equipped with a dedicated fan, quickly achieves fine crushing of the ashes while also absorbing dust generated during the process, thereby reducing airborne particles. The overall exterior of the unit is crafted using stainless steel bending technology, ensuring durability, ease of cleaning, and a dignified appearance, catering specifically to the needs of ash handling.
Main Specifications
Overall Dimension (L*W*H)
1040*700*960mm
Exterior Material
Stainless Steel
Ash Inlet Dimensions(L*W*H)
230*200*260mm
Crushing Barrel Dimensions
Diameter 165mm, Depth 355mm
Power of Each Module
120W
Crushing Motor
0.75kW 6-stage motor
Circulating Fan Power
120W
Ash Cooling and Crushing Integrated Machine
This product is a specialized device that integrates cooling, crushing, and dust control into a compact design suitable for practical applications. The cooling system features four independent refrigeration modules. Once activated, these modules generate cold air that is transferred to the cooling platform. The ashes are first cooled on the platform before being pushed into the crushing barrel. The crushing system, equipped with a dedicated fan, quickly achieves fine crushing of the ashes while also absorbing dust generated during the process, thereby reducing airborne particles. The overall exterior of the unit is crafted using stainless steel bending technology, ensuring durability, ease of cleaning, and a dignified appearance, catering specifically to the needs of ash handling.
Main Specifications
Overall Dimension (L*W*H)
1040*700*960mm
Exterior Material
Stainless Steel
Ash Inlet Dimensions(L*W*H)
230*200*260mm
Crushing Barrel Dimensions
Diameter 165mm, Depth 355mm
Power of Each Module
120W
Crushing Motor
0.75kW 6-stage motor
Circulating Fan Power
120W
