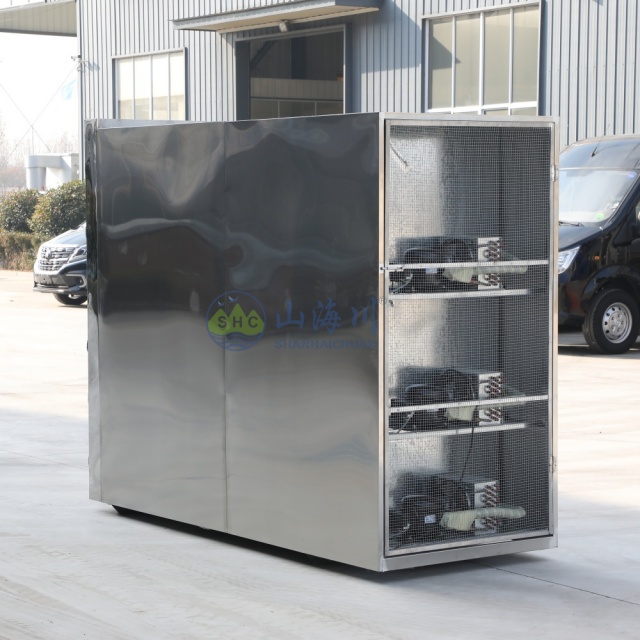

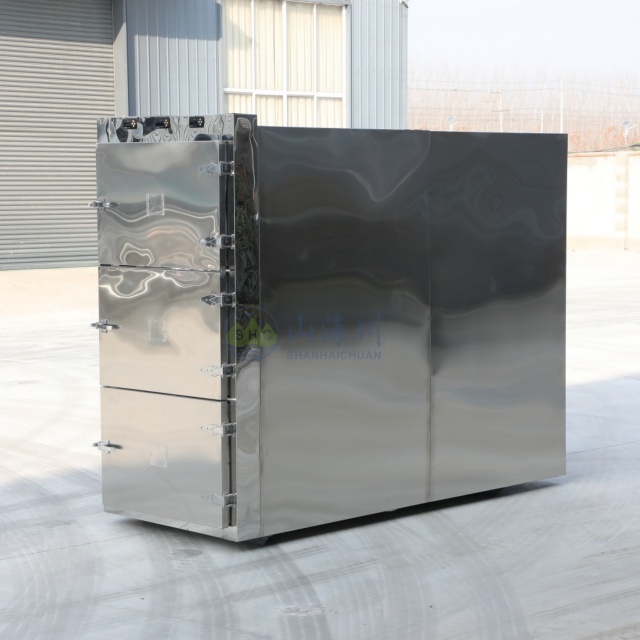

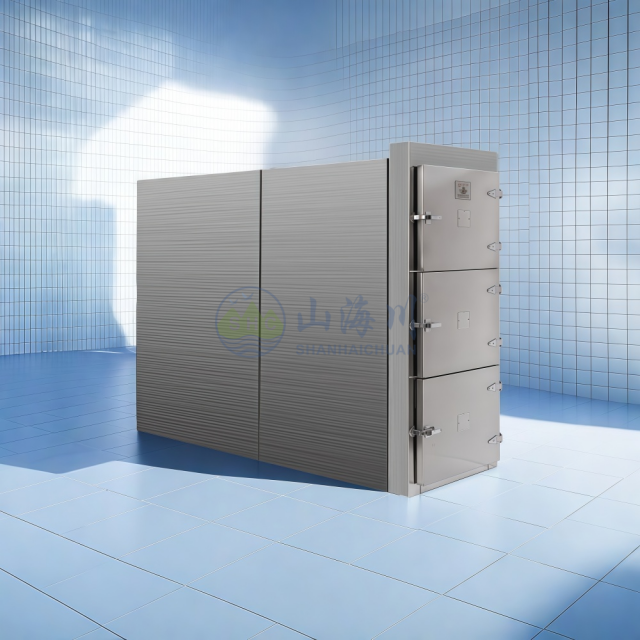

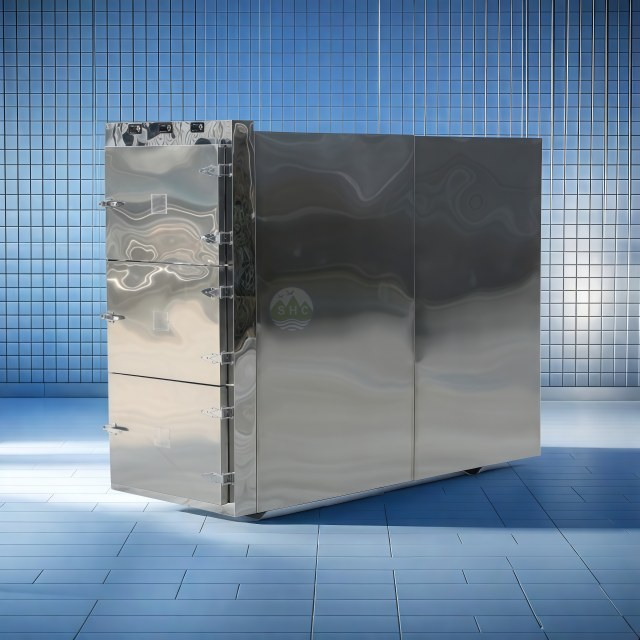

Three Body Mortuary Freezer

The Mortuary Freezer is a specialized refrigeration unit designed to safely store human remains in a controlled environment. These units are essential in morgues, hospitals, and funeral homes, ensuring that decedents are preserved at optimal temperatures until an autopsy, examination, or burial can take place.

Availability:



Inquire

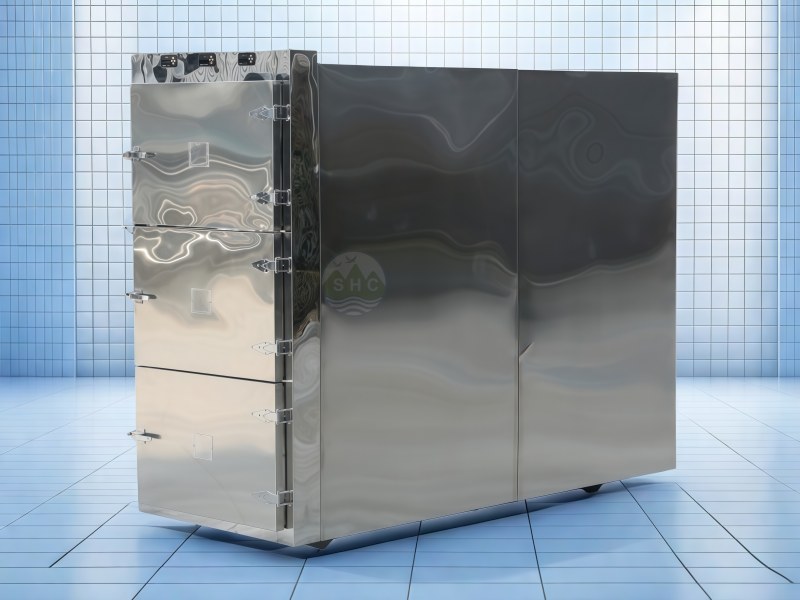

Standard Three Body Mortuary Freezer

A mortuary freezer is a specialized refrigeration unit designed to preserve human remains in a controlled environment, primarily for use in funeral homes, morgues, and medical facilities. These freezers play a crucial role in the handling and storage of deceased bodies, providing a safe and sanitary method of preservation until burial or cremation can take place.

Key Features

Unique Design for Best Performance

Dual-layer inner design: the inner layer is made of embossed aluminum plate, while the outer layer consists of high-quality stainless steel plate folded together. The stainless steel features U-shaped holes with a punching density of 45 holes/m², allowing copper tubes to be exposed. This design enhances cooling efficiency, ensures good sealing, and maintains a consistent cooling temperature.
Thermostat

Digital, microcomputer-controlled, featuring high temperature measurement accuracy, a wide temperature control range, and intuitive digital display, effectively addressing the problem of unknown temperature rises within the cabinet. Temperature display range: -40°C to +50°C, with a display accuracy of 0.1°C. Measurement accuracy: ±1°C, Temperature limit alarm adjustable range: 0°C to 20°C.

Excellent Thermal Insulation

The insulation layer is formed by one-time foaming of energy-saving and environmentally friendly polyurethane, providing excellent thermal insulation; the foaming density is 40Kg/m³, with a thickness of approximately 10 cm. Each room has individual compressor ensure the best cooling performance.
Safety Door Lock System

Safety door lock system with lock keys. Unique door sealing design for the minimum lost of cold air during body inputing in progress.
Removeable body trays.
Alarming system

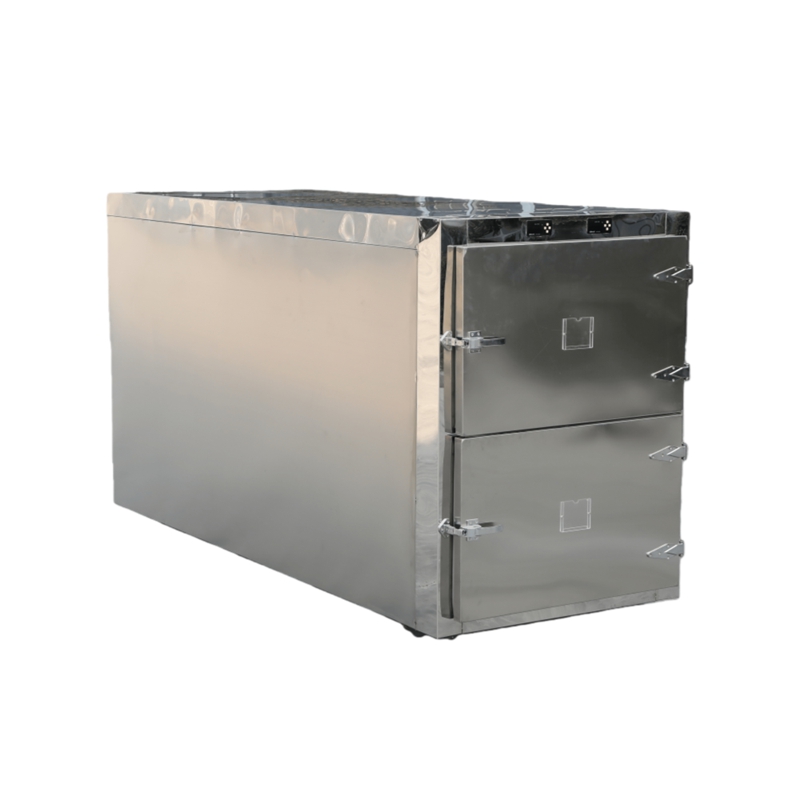

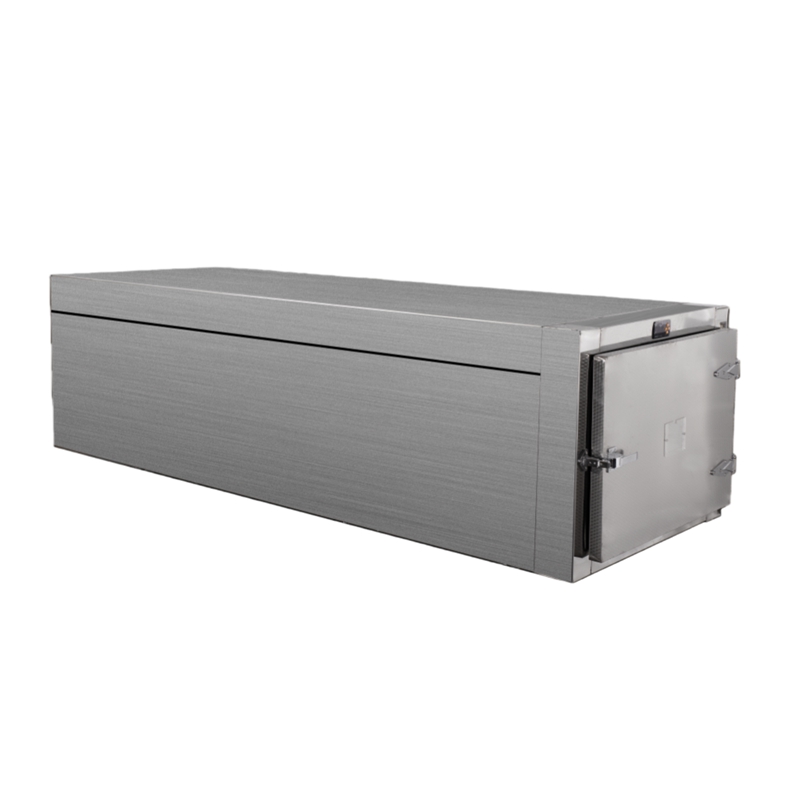

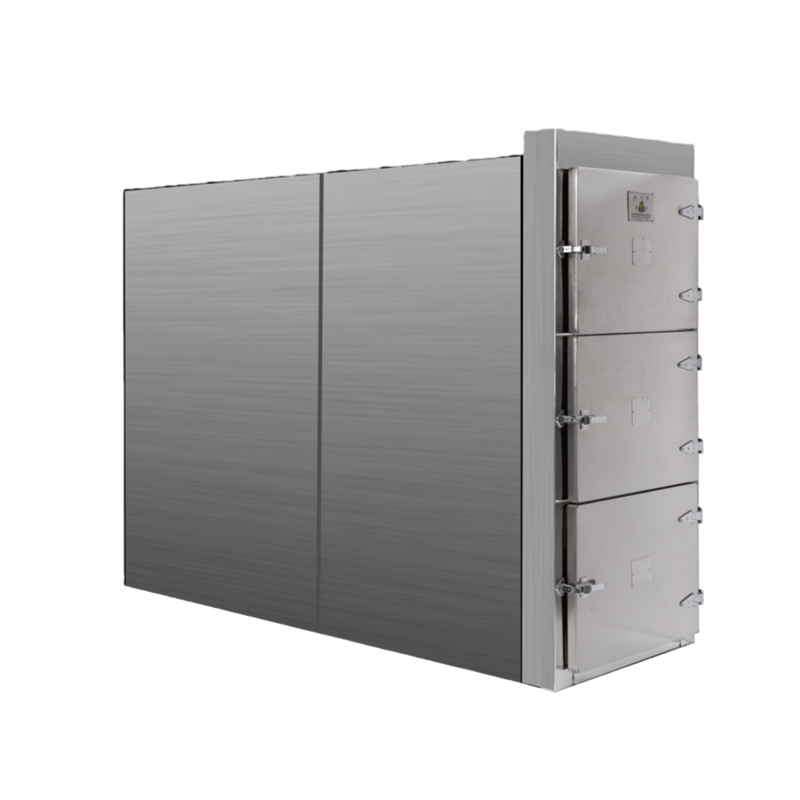

Our Standard Heavy Duty Mortuary Freezers Range

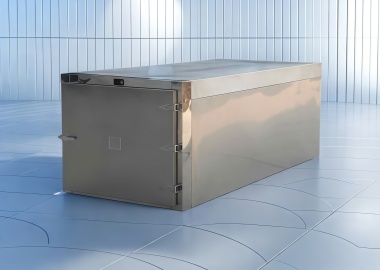

Our Extra Size Mortuary Body Freezer

Our Extra larger body freezer provides ample space, ensuring that storage is never a concern. It is designed to comfortably fit taller bodies, making it ideal for funeral homes and medical facilities that cater to diverse clientele.

Choose our larger body freezer for its combination of size, durability, and advanced technology — a perfect solution for your specific needs.

Also We Accept Your Specail Customization Order

Discover More

Our Mortuary and Memorial Equipment Range

One-Stop Solution for Your Cremation Equipment

Let's Connect

Have questions or need a quote? We're just a message away! Reach out anytime, and let us make your project a success together.

Contact Now >

Overall Dimension	25501000730mm(±5%)
Inner Dimension	2000700480mm(±5%)
Body Tray Dimension	193064038mm(±5%)
Condenser Dimension	280200230mm((±10%)
Exterior Finish Materials	304 Stainless Steel
Non-fluorinated Refrigerant	R134A
Refrigeration temperature range	-10°C to -20°C (The compressor will automatically shut down when the temperature reaches -20°C to conserve energy.)
Compressor Model	Zanusi GTM12AA/HTH12AT single phase 370W
Voltage	220VAC±10%

Overall Dimension	256010001380mm(±5%)
Inner Dimension	2000800490mm(±5%)
Body Tray Dimension	193075038mm(±5%)
Condenser Dimension	280200230mm((±10%)
Exterior Finish Materials	304 Stainless Steel
Non-fluorinated Refrigerant	R134A
Refrigeration temperature range	-10°C to -20°C (The compressor will automatically shut down when the temperature reaches -20°C to conserve energy.)
Compressor Model	Zanussi GTM12AA/HTH12AT single phase 370W
Compressor Quantity	2
Voltage	220VAC±10% 50Hz
Total Power Consumption	≤800W

Overall Dimension	257010002030mm(±5%)
Inner Dimension	2022800500mm(±5%)
Body Tray Dimension	193075038mm(±5%)
Condenser Dimension	280200230mm((±10%)
Exterior Finish Materials	304 Stainless Steel
Non-fluorinated Refrigerant	R134A
Refrigeration temperature range	-10°C to -20°C (The compressor will automatically shut down when the temperature reaches -20°C to conserve energy.)
Compressor Model	Zanussi GTM12AA/HTH12AT single phase 370W
Compressor Quantity	3
Voltage	220VAC±10% 50Hz
Total Power Consumption	≤1200W

Overall Dimension	25501000730mm(±5%)
Inner Dimension	2000700480mm(±5%)
Body Tray Dimension	193064038mm(±5%)
Condenser Dimension	280200230mm((±10%)
Exterior Finish Materials	304 Stainless Steel
Non-fluorinated Refrigerant	R134A
Refrigeration temperature range	-10°C to -20°C (The compressor will automatically shut down when the temperature reaches -20°C to conserve energy.)
Compressor Model	Zanusi GTM12AA/HTH12AT single phase 370W
Voltage	220VAC±10%

Overall Dimension	256010001380mm(±5%)
Inner Dimension	2000800490mm(±5%)
Body Tray Dimension	193075038mm(±5%)
Condenser Dimension	280200230mm((±10%)
Exterior Finish Materials	304 Stainless Steel
Non-fluorinated Refrigerant	R134A
Refrigeration temperature range	-10°C to -20°C (The compressor will automatically shut down when the temperature reaches -20°C to conserve energy.)
Compressor Model	Zanussi GTM12AA/HTH12AT single phase 370W
Compressor Quantity	2
Voltage	220VAC±10% 50Hz
Total Power Consumption	≤800W
