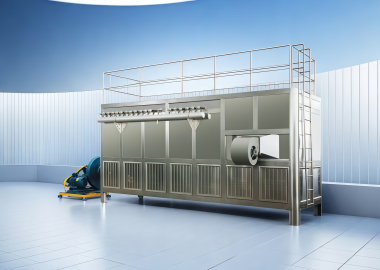

Combination Emission Filtration System

Our Combination Exhaust Gas Treatment System not only helps crematoriums and funeral homes meet regulatory requirements but also promotes environmental sustainability. By improving quality and reducing emissions, our system plays a crucial role in fostering a cleaner and healthier planet for future generations. This system integrates multiple treatment technologies to ensure high efficiency in pollutant removal, making it suitable for a wide range of our Cremators

Availability:



Inquire

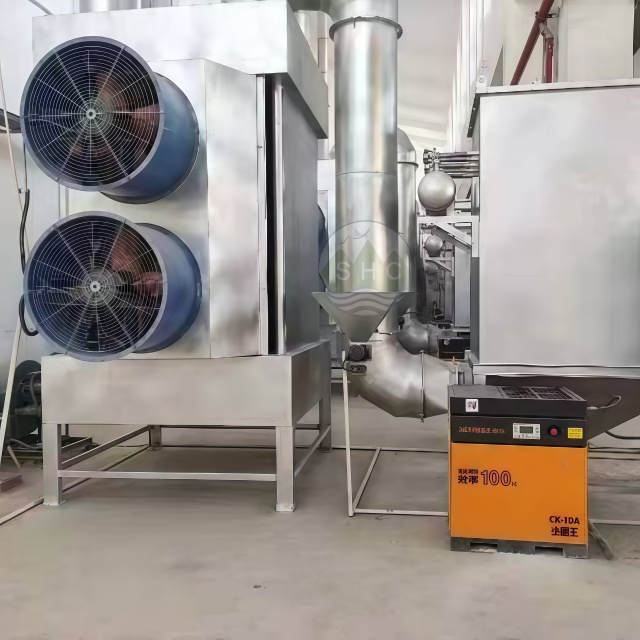

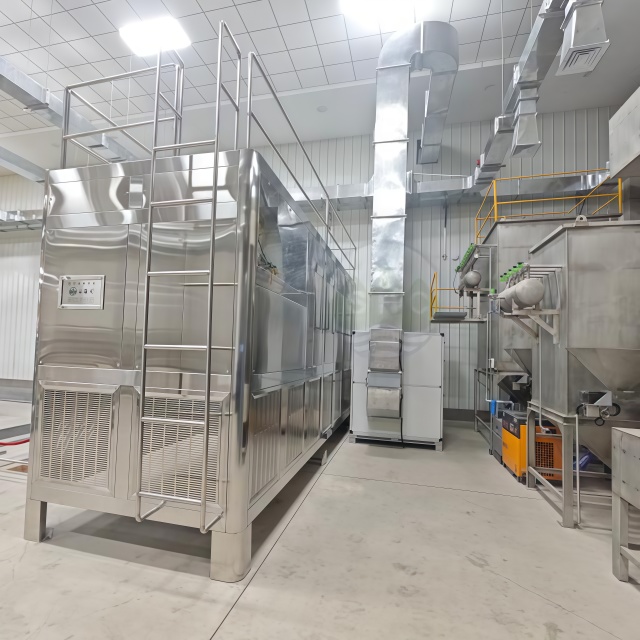

Combination Emission Filtration System

Emission Filtration System also aka The Flue Gas Treatment System designed for human cremation machine plays a critical role in ensuring that emissions generated during the cremation process are effectively managed. This system is essential for adhering to environmental standards and protecting public health.

Benifits and Functions

Removal of Harmful Substances

Various harmful substances, such as dioxins, heavy metals, and nitrogen oxides, are generated during the cremation process. The flue gas treatment system removes these harmful substances through physical and chemical methods.
Reduction of Odors

The cremation process may produce unpleasant odors. The flue gas treatment system employs adsorption and washing techniques to eliminate odor-causing substances, thereby reducing their impact on the surrounding environment.
Lowering Particulate Emissions

The flue gas may contain unburned particulate matter. The treatment system implements measures such as filtration and settling to reduce the emission of particulate matter.
Energy Recovery

Some flue gas treatment systems are capable of recovering the heat generated during the cremation process, improving energy efficiency and reducing energy consumption.
Compliance with Environmental Regulations

By effectively treating the flue gas, the system ensures that the emitted gases comply with national and local environmental protection standards, preventing environmental pollution and legal liabilities.
Enhancing Public Acceptance

A well-functioning flue gas treatment system can improve the image of cremation facilities, increasing public recognition and acceptance of cremation services.

STEP 1
Spark Interceptor

The spark interceptor captures and prevents the release of sparks produced during the cremation process. This component is crucial for minimizing fire hazards and ensuring the safe operation of the flue gas treatment system.
STEP 2
Rapid Cooling System for Flue Gases

This system quickly lowers the temperature of the flue gases immediately after their formation. Rapid cooling is vital to prevent the formation of harmful compounds and to optimize the efficiency of subsequent emissions control processes.
STEP 3

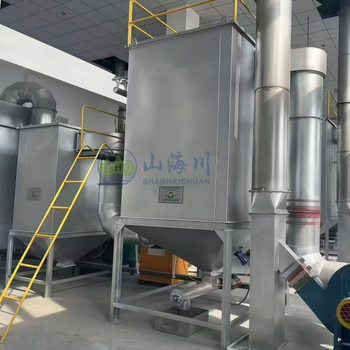

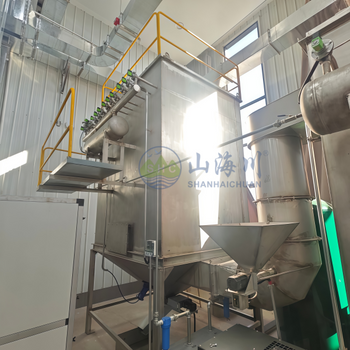

Dust Collector

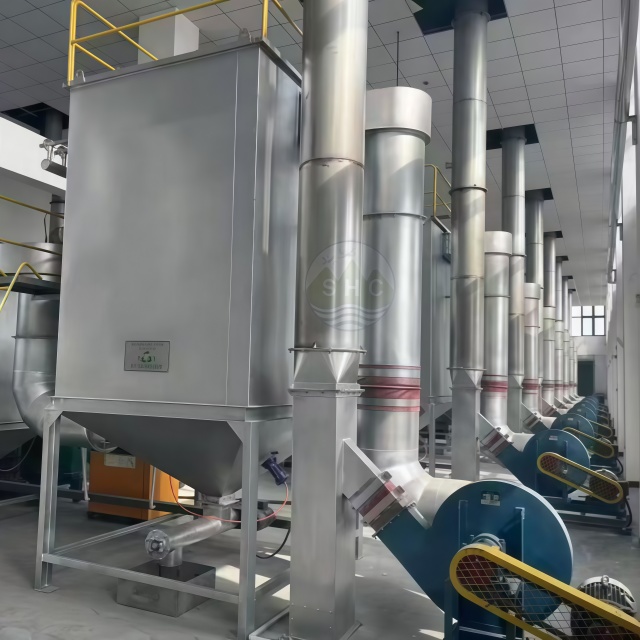

The baghouse dust collector employs fabric filter bags to capture particulate matter present in the flue gases. By effectively removing dust and fine particles, this component helps maintain air quality and ensures that emissions do not exceed allowed limits.
STEP 4
Activated Carbon Adsorption Tower

This tower utilizes activated carbon to adsorb volatile organic compounds (VOCs) and other noxious substances from the flue gases. This process significantly reduces odors and harmful emissions, ensuring compliance with regulatory requirements.
STEP 5
Emergency Smoke Exhaust System

In the event of an emergency or malfunction, this system ensures the safe evacuation of flue gases, preventing the buildup of harmful emissions. This system is essential for protecting both personnel and the surrounding environment.
STEP 6

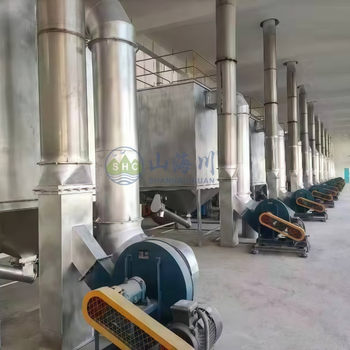

Induced Draft and Exhaust System

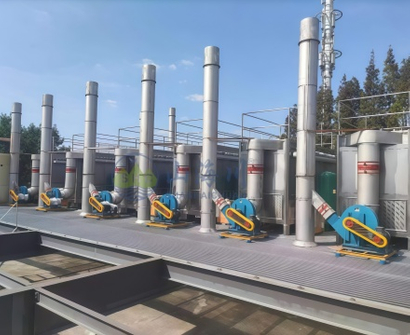

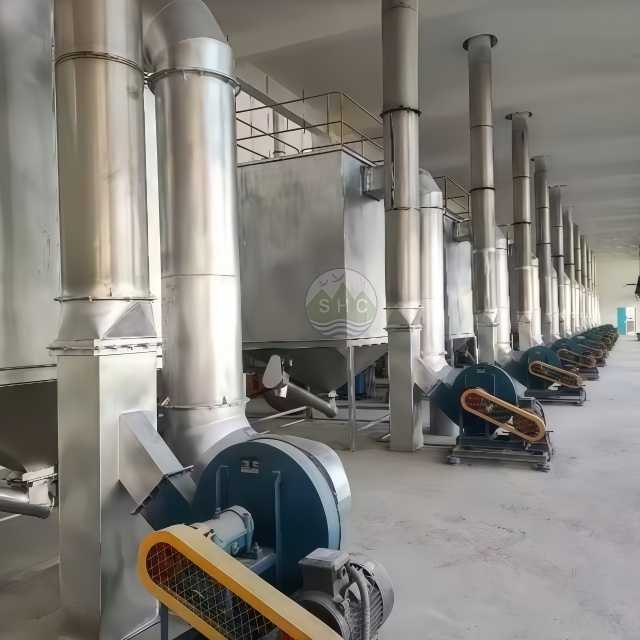

This system is responsible for directing the flow of flue gases through the treatment process. The induced draft fan creates a negative pressure that efficiently pulls gases through the treatment components, ensuring optimal performance of the filtration and scrubbing systems.

STEP 1
Spark Interceptor

The spark interceptor captures and prevents the release of sparks produced during the cremation process. This component is crucial for minimizing fire hazards and ensuring the safe operation of the flue gas treatment system.
STEP 2
Rapid Cooling System for Flue Gases

This system quickly lowers the temperature of the flue gases immediately after their formation. Rapid cooling is vital to prevent the formation of harmful compounds and to optimize the efficiency of subsequent emissions control processes.
STEP 3
Dust Collector

The baghouse dust collector employs fabric filter bags to capture particulate matter present in the flue gases. By effectively removing dust and fine particles, this component helps maintain air quality and ensures that emissions do not exceed allowed limits.
STEP 4
Activated Carbon Adsorption Tower

This tower utilizes activated carbon to adsorb volatile organic compounds (VOCs) and other noxious substances from the flue gases. This process significantly reduces odors and harmful emissions, ensuring compliance with regulatory requirements.
STEP 5
Emergency Smoke Exhaust System

In the event of an emergency or malfunction, this system ensures the safe evacuation of flue gases, preventing the buildup of harmful emissions. This system is essential for protecting both personnel and the surrounding environment.
STEP 6
Induced Draft and Exhaust System

This system is responsible for directing the flow of flue gases through the treatment process. The induced draft fan creates a negative pressure that efficiently pulls gases through the treatment components, ensuring optimal performance of the filtration and scrubbing systems.

Find out More on Our Integrated Cremation Furnace Flue Gas Treatment System

The Integrated Cremation Furnace Flue Gas Treatment System is designed to efficiently manage and reduce harmful emissions produced during the cremation process. This state-of-the-art system ensures compliance with environmental regulations while prioritizing safety and health standards.

One-Stop Solution for Your Cremation Equipment

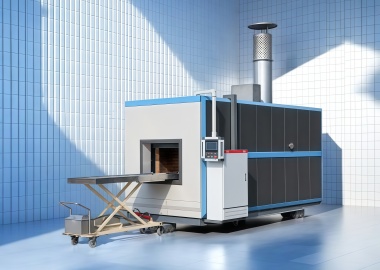

Human Cremation Machine

Our full range of human cremation machines can be customized to meet the unique requirements of your project.
Read More
Emission Filter System

An emission filter system for cremation machines captures harmful pollutants released during the cremation process.
Read More

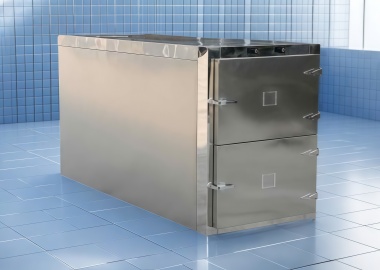

Mortuary & Memorial Solutions

Mortuary freezers, body preparation tables, wake coffins, etc provide you with a complete solution for mortuary and memorial equipment.
Read More

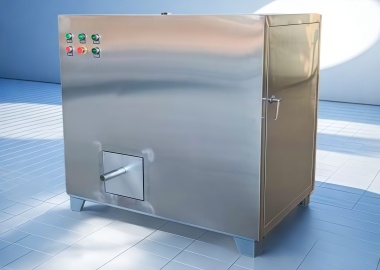

Cremation Process Equipment

Our Cremation Process Equipment includes: cremulator, bone ash cooling machine, coffin charging system and body transfer trolleys
Read More

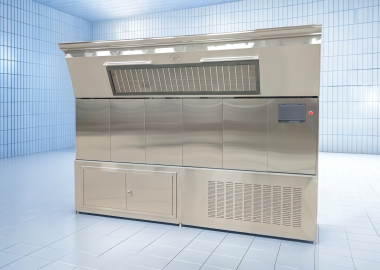

Crematorium Disinfection System

The Crematorium Disinfection System provides a clean and sterile workspace for funeral homes, ensuring a hygienic environment for their operations.
Read More
Funeral Vehicles

Shanhai Chuan is a professional company specializing in funeral vehicle modification services, holding a legitimate license for funeral vehicle conversions.

Let's Connect

Have questions or need a quote? We're just a message away! Reach out anytime, and let us make your project a success together.

Contact Now >

No.	Item	Specification
1	Overall Dimension	LWH=750022002450
2	Dust removal fan power	11KW(using variable frequency fan)
3	Air compressor power	7.5KW
4	External rotor cooling fan power	4KW
5	Dust cleaning method	Automatic pulse backflushing with additional mechanical vibration
6	Automatic slag collection motor power	1.1KW
7	Number of dust collection chambers	4 groups
8	Cleaning air pressure	0.5-0.7MPa
9	Number of electromagnetic pulse valves	18 groups
10	Control method	PLC programmed control, touchscreen operation, manual and automatic control available
11	Dust removal efficiency	≥ 99.8%
12	Product weight	3000kgs

No.	Item	Specification
1	Overall Dimension	LWH=750022002450
2	Dust removal fan power	11KW(using variable frequency fan)
3	Air compressor power	7.5KW
4	External rotor cooling fan power	4KW
5	Dust cleaning method	Automatic pulse backflushing with additional mechanical vibration
6	Automatic slag collection motor power	1.1KW
7	Number of dust collection chambers	4 groups
8	Cleaning air pressure	0.5-0.7MPa
9	Number of electromagnetic pulse valves	18 groups
10	Control method	PLC programmed control, touchscreen operation, manual and automatic control available
11	Dust removal efficiency	≥ 99.8%
12	Product weight	3000kgs
