Containerized cremation machines are innovative solutions designed to provide efficient and environmentally friendly cremation services. These machines are housed in a transportable container, which makes them ideal for various applications, including rural areas, temporary setups, disaster relief operations, and remote locations where traditional crematorium facilities are not feasible.

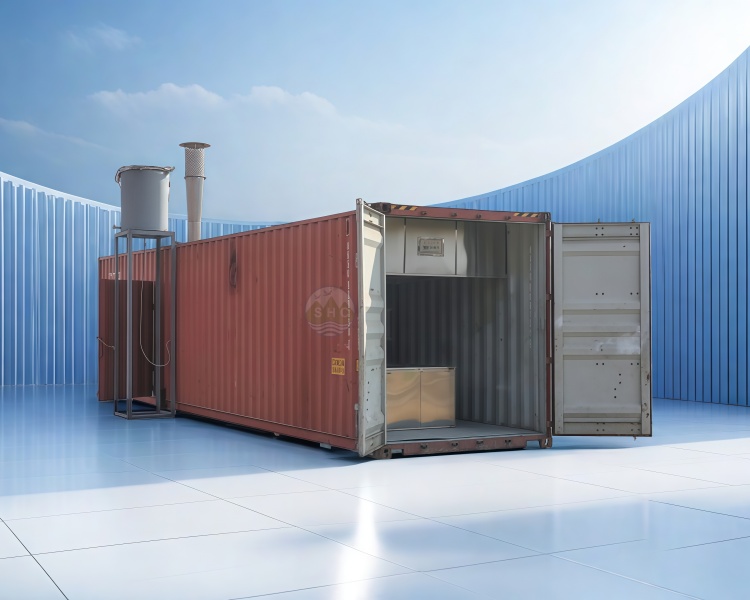

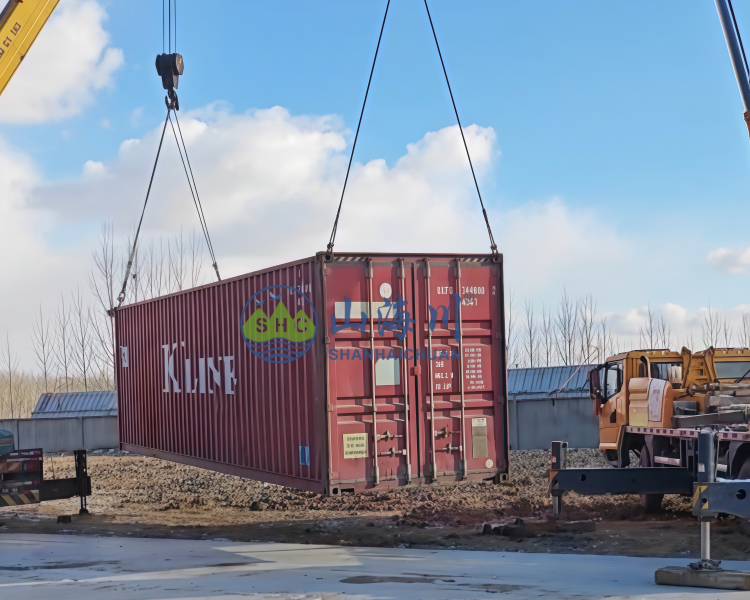

Fully pre-installed and tested within a shipping container.

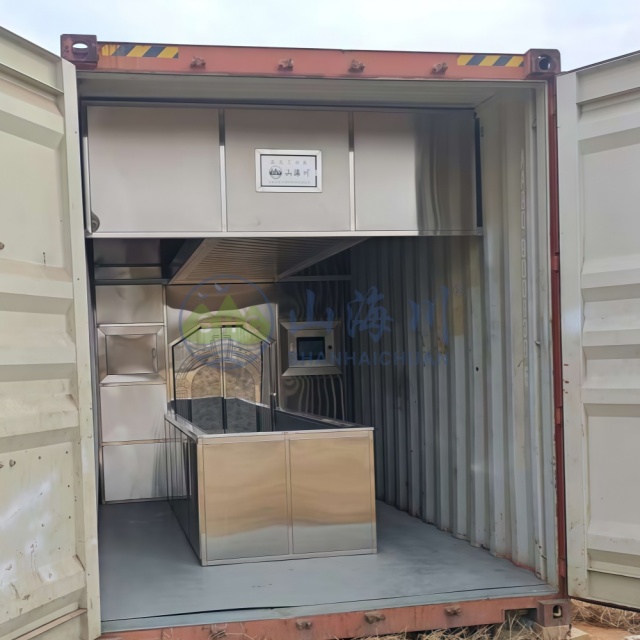

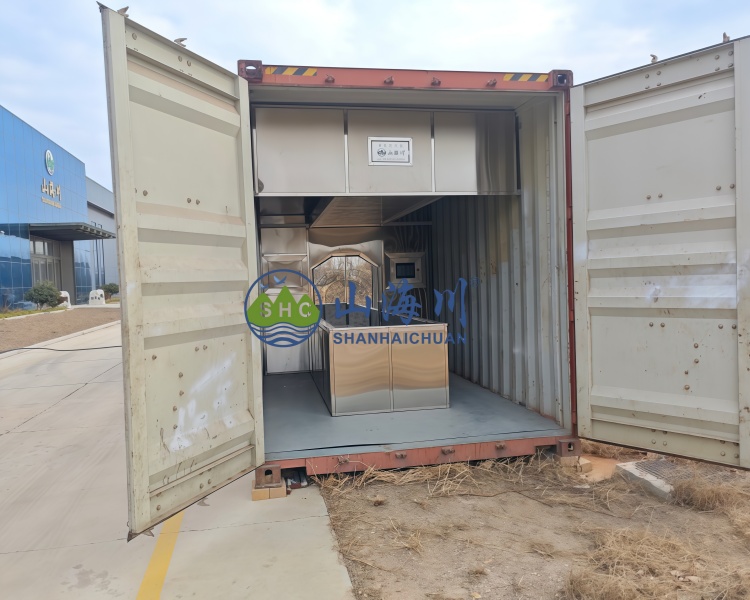

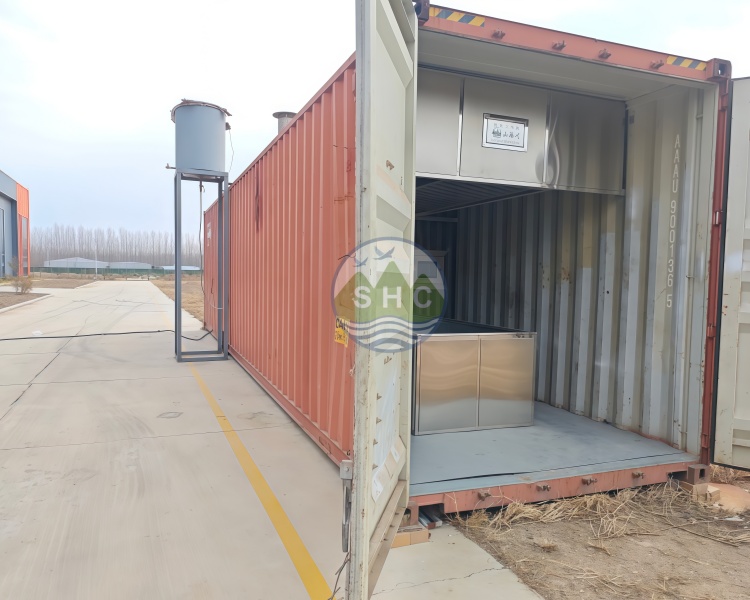

The SHC-C100 Containerized Cremation Machine is designed for use in special circumstances, such as during epidemics or in disaster-affected areas. The entire system is fully assembled and tested within a shipping container, allowing for immediate operation upon arrival at the destination by simply connecting it to the power supply.

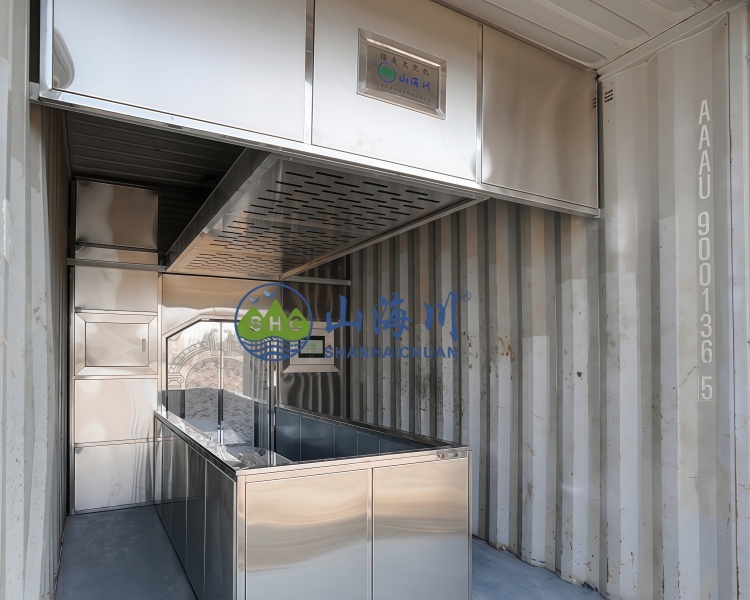

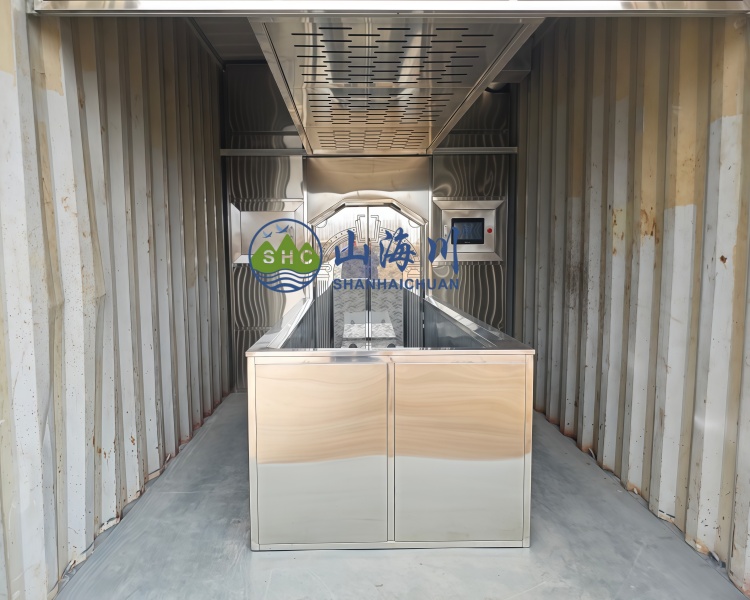

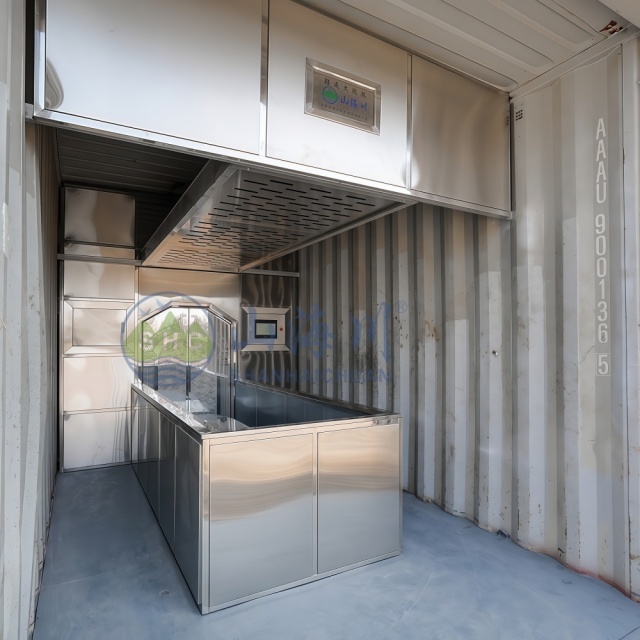

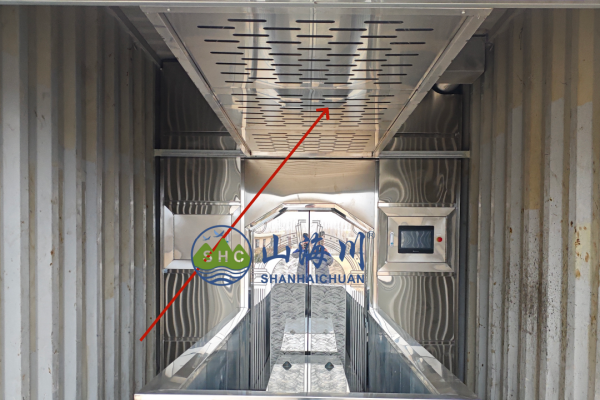

After the cremation process is completed, the chamber bed will be transported to the front ash bone collection platform. The cooling hood will cool the ash bones efficently before ash picking.

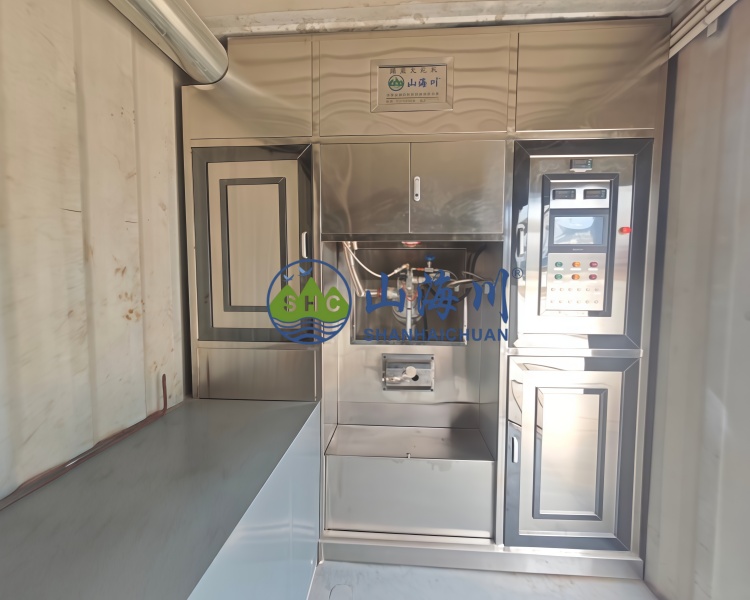

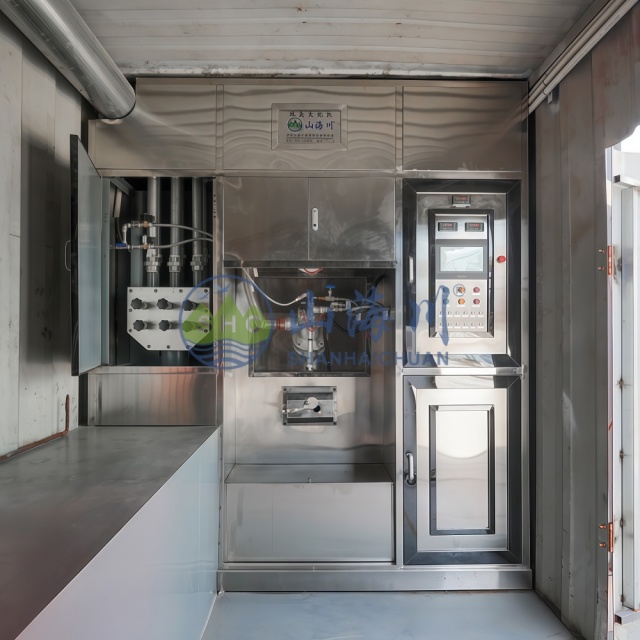

Digital Display System
The digital display system will show information related to the cremation process, including oxygen levels and duration of cremation, enabling staff to monitor the cremation process in real-time and intervene manually if necessary.
Remote Control Functional
Our cremation machine features a touchscreen interface that allows for automated control of the operational process. Additionally, it can be upgraded to be controlled via our mobile app. To further enhance user convenience, we also offer remote internet connectivity for system updates, checks, and maintenance for the equipment.

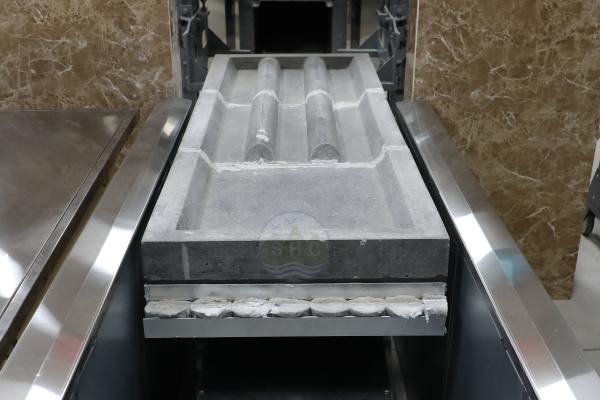

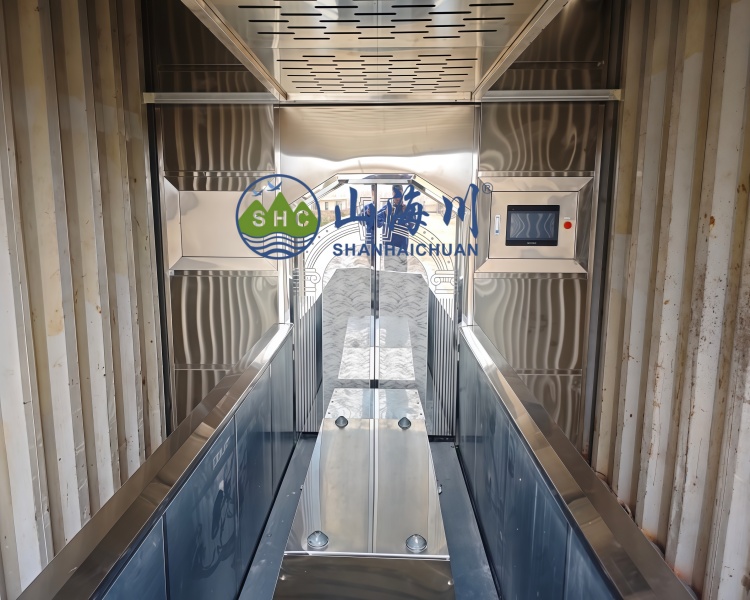

Movable Chamber Bed
Unlike conventional cremation machines that feature a fixed hearth bed, our system incorporates a movable hearth bed. This allows for seamless transportation of the body into the cremation chamber and enhances operational efficiency.

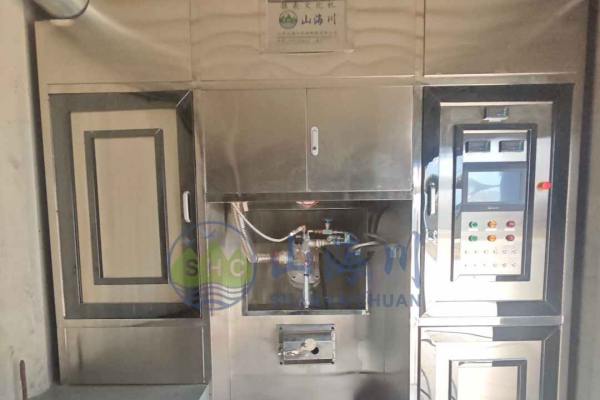

Automated Operations
Our cremation machine automates the process of moving the hearth bed outside the chamber after cremation. This feature not only facilitates the cooling of remains but also simplifies the handling of bodies, making the process more hygienic and less labor-intensive.

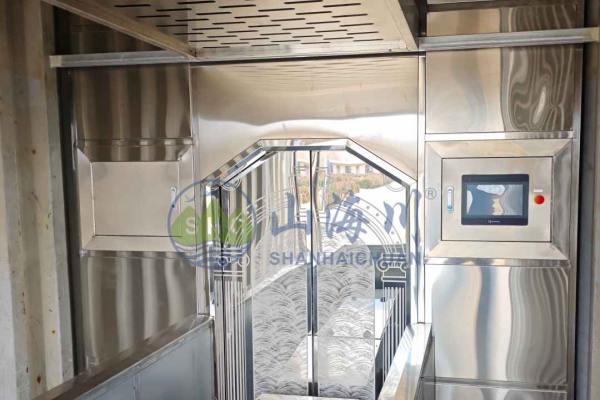

Streamlined Workflow
The combination of automatic movement and efficient ash collection significantly streamlines operations for funeral homes and crematories. Staff can focus on providing compassionate service rather than handling cumbersome manual tasks.

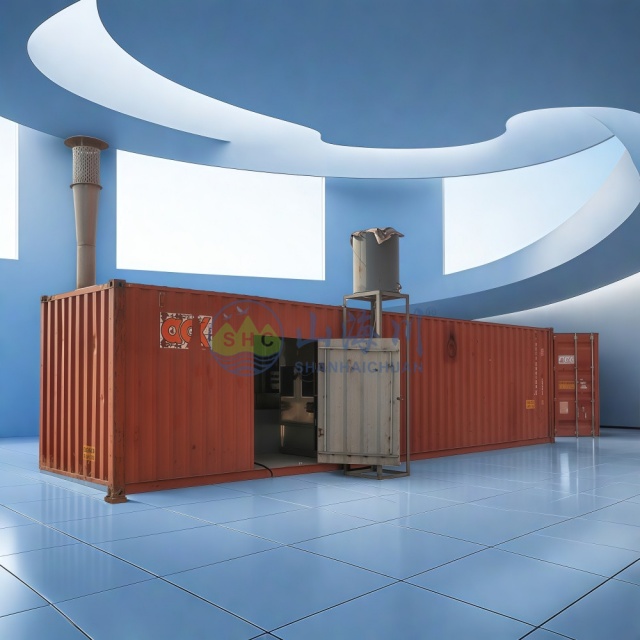

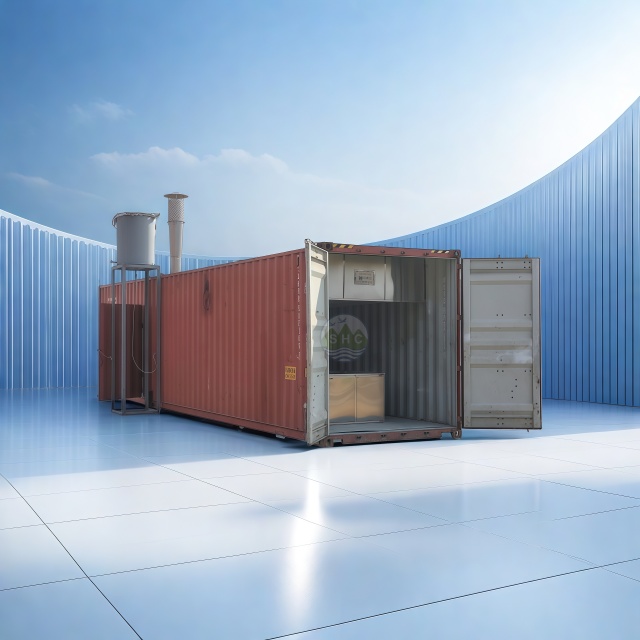

Containerized Cremation Machine
Our Range of Core Cremation Machinery

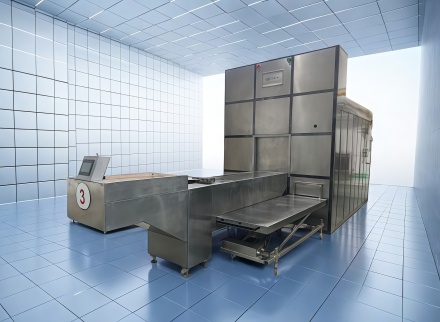

Ash collection Cremator

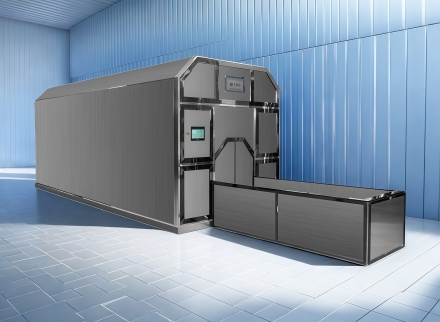

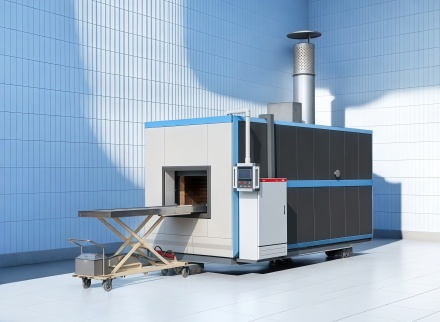

European Style Cremator
Fixed Chamber Bed Cremator
Shandong Shanhai Chuan Environmental Protection Technology Co., Ltd. is the only manufacturer in China that independently R&D and Manufacturer the full range of cremation equipment with over 20 years of research and production experience.
Our independently developed SHC-C100 Cremator serves as an emergency solution for challenging situations, providing a reliable and efficient means for the cremation of deceased individuals when traditional facilities may be unavailable.
Main specification
No.
Item
Specification
1
Furnace Dimension
L*W*H=4055*2200*2550mm
2
Ash Picking Platform Dimension
L*W*H=2580*1100*770mm
3
Chamber Dimension
L*W*H=2200*800*650mm
4
Overall Machine Dimension
L*W*H=6640*2200*2550mm
5
Furnace Gate Dimension
L*W*H=1150*1000*100mm
6
Fuel Type
0-10#Light Diesel,City Gas,Natural Gas,LPG
7
Average Cremation Time
35-45mins without wooden coffin
8
Average cooling time
5-15mins
9
Total Power
≥22 kw
Our independently developed SHC-C100 Cremator serves as an emergency solution for challenging situations, providing a reliable and efficient means for the cremation of deceased individuals when traditional facilities may be unavailable.
Main specification
No.
Item
Specification
1
Furnace Dimension
L*W*H=4055*2200*2550mm
2
Ash Picking Platform Dimension
L*W*H=2580*1100*770mm
3
Chamber Dimension
L*W*H=2200*800*650mm
4
Overall Machine Dimension
L*W*H=6640*2200*2550mm
5
Furnace Gate Dimension
L*W*H=1150*1000*100mm
6
Fuel Type
0-10#Light Diesel,City Gas,Natural Gas,LPG
7
Average Cremation Time
35-45mins without wooden coffin
8
Average cooling time
5-15mins
9
Total Power
≥22 kw
